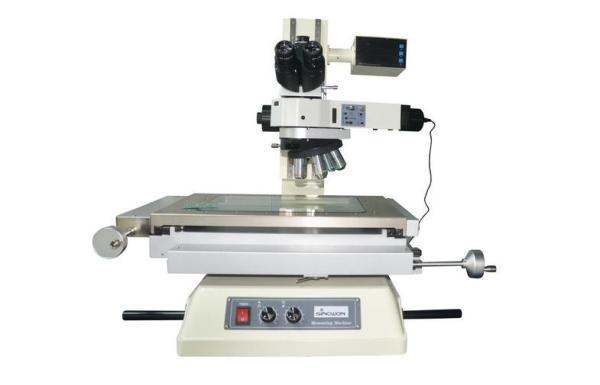

300x200mm X/Y-axis Travel Measuring Microscope With 2um Accuracy

Name: 300x200mm XYaxis Travel Measuring Microscope With 2um Accuracy
Brand: SINOWON
Price: 1 USD

Brand Name : SINOWON

Model Number : STM-3020M

Certification : CE

Place of Origin : China

MOQ : 1 set

Supply Ability : 100 sets per month

Delivery Time : 10 days

Packaging Details : Plywood

X/Y-axis travel : 300x200mm

Scale Resolution : 0.0001mm

Accuracy : (2+L/200) μm

Observation Image : Obverse image (Erect Image is available)

Eyepiece Tube : Binocular Eyepiece: WF10/20

Objective Lens : Standard delivery: 5x ,10X, 20X, 50x; Optional: 100x

Contour Illumination : Adjustable LED

Surface Illumination : Adjustable LED

Z Axis Focusing : Manual focusing (Coarse/fine)

XY Stage Floating Function : Quick release mechanism

Contact Now

300x200mm X/Y-axis Travel Measuring Microscope With 2um Accuracy

Product Features:

Bright field observation, clear and flare less obverse image, wide field of view.

Long working distance objectives, up to optical 1000x magnification

Aperture diaphragms in the transmitted illumination and reflected illumination system as standard feature

The quick-release system, which is especially useful in long-stroke measurements

Focus and measure using the fine/coarse movement handle with the large-size grips on both sides of the
column

Zero-set switches (X- and Y-axis) are also located near the stage feed handles.

Available with the Vision Unit for upgrading to a vision measuring system

Technical Specifications :

Microscope Model	STM-2015M	STM-3020M
Code #	532-180	532-190
X/Y-axis travel	250x150mm	300x200mm
Scale Resolution	0.0001mm
XY Stage Measuring Accuracy at 20ºC.	(2+L/200) μm L: measuring length
Observation Image	Obverse image (Erect Image is available)
Eyepiece Tube	Binocular Eyepiece: WF10/20
Objective Lens	Standard delivery: 5x ,10X, 20X, 50x; Optional: 100x
Contour Illumination	Adjustable LED
Surface Illumination	Adjustable LED
Z Axis Travel Range	Standard focus travel:150mm, 200mm is optional
Z Axis Focusing	Manual focusing (Coarse/fine)
XY Stage Floating Function	Quick release mechanism
Display Unit Function	Zero setting, Direction switching, Data output via RS-232
Power Supply	AC220/50HZ; AC110V/60Hz
Optional Accessories	High-Precision Rotary Table RT4(D:165mm), RT5(262mm)
	Digital Readout DP300
	Quickmeasuring Measuring Software QM2.0
	CCD adapter and CCD camera

Optical Specification:

Name	Objective					Eyepiece WF10/22
Name	N.A.	W.D.(mm)	f(mm)’	R(um)	±▽p(um)	Magnification	Visual Field(mm)
5x	0.15	11.6	40	2.1	16.3	50x	¢4.4
10x	0.3	6.3	20	0.9	3.1	100x	¢2.2
20x	0.4	10.3	10	0.69	1.8	200x	¢1.1
50x	0.8	2	4	0.34	0.4	500x	¢0.44
100x	0.8	1.96	2	0.34	0.2	100x	¢0.22
